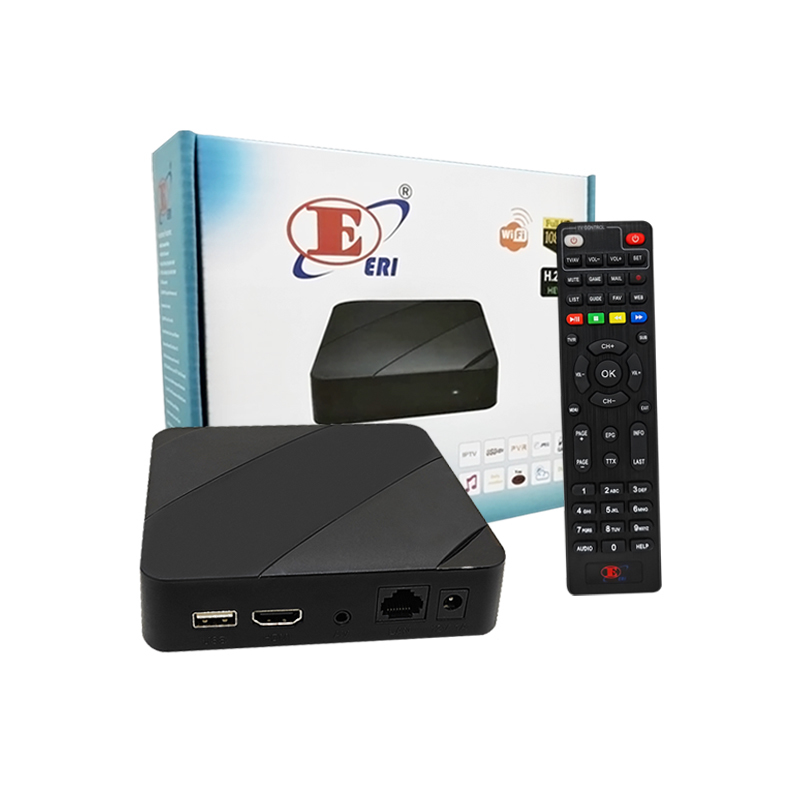

Linux IPTV Set Top Box 1080P H.265 HEVC with 802.11n WiFi
  • Linux IPTV Set Top Box 1080P H.265 HEVC with 802.11n WiFi
  • Linux IPTV Set Top Box 1080P H.265 HEVC with 802.11n WiFi
  • Linux IPTV Set Top Box 1080P H.265 HEVC with 802.11n WiFi
  • Linux IPTV Set Top Box 1080P H.265 HEVC with 802.11n WiFi
  • Linux IPTV Set Top Box 1080P H.265 HEVC with 802.11n WiFi
  • Linux IPTV Set Top Box 1080P H.265 HEVC with 802.11n WiFi
Linux IPTV Set Top Box 1080P H.265 HEVC with 802.11n WiFi

Linux IPTV Set Top Box 1080P H.265 HEVC with 802.11n WiFi

Place of Origin Guangdong, China
Model Number ERI-IPTV004
Product Details
Operating System:
Linux
Processor Core:
Quad Core
Processor Model:
GX6702H1
CPU Frequency:
1500DMIPS 32bit
Flash Memory:
16MB
DDR3 Memory:
128MB
Supported Resolution:
1920 X 1080
Ethernet Speed:
10/100MBps
WiFi Standard:
802.11n 2.4GHz
USB Port:
1*USB 2.0
HDMI Version:
1.4
Power Supply:
12V 1A
Video Decoder:
HEVC/H.265,H.264,MPEG-4,H.263 P3,AVS,AVS Plus,MPEG-2,MPEG-1
Audio Decoder:
MPEG1 I/II, MP3,MPEG-4 AAC And AAC Plus,DRA
Sampling Frequency:
32KHz, 44.1KHz, 48KHz
Highlight:

Linux IPTV set top box with WiFi

,

1080P H.265 HEVC set top box

,

802.11n WiFi TV set top box

Product Description
HLS(M3U8) UDP RTP RTSP RTMP HTTP Linux Internet Protocol TV WiFi YouTube Set Top Box
Linux IPTV Set Top Box 1080P H.265 HEVC with 802.11n WiFi 0
Product Specifications
Attribute Value
Brand ERI
Operating System Linux
Processor Core Quad Core
Processor GX6702H1
Supported Resolution 1920 x 1080
Ethernet 1 x 10/100MBps
WiFi 802.11n 2.4GHz
USB Host 1 x USB 2.0
HD H.265/HEVC
HDMI 1.4
Power Supply 12V 1A
Warranty 1 YEAR
Technical Details
CPU Specifications
Main Chip GX6702H1
Operating System Linux
CPU Frequency 1500DMIPS 32bit
Flash Memory 16MB
DDR3 Memory 128MB
System Features
IPTV Protocol HLS(M3U8), UDP, RTP, RTSP, RTMP, HTTP
Content Protection HDCP, Macrovision 7.1, CGMS-A
DRM NSTV
Video Decoder
Supported Formats HEVC/H.265, H.264, MPEG-4, H.263 P3, AVS, AVS plus, MPEG-2, MPEG-1
Video Output CVBS*1, HDMI1.4
Video Format PAL/NTSC
Aspect Ratio 4:3/16:9
Resolution 1080p, 1080i, 720p, 576p, 480p, etc
Audio Decoder
Supported Formats MPEG1 I/II, MP3, MPEG-4 AAC and AAC plus, DRA
Audio Mode Left/Right/Stereo
Sampling Frequency 32KHz, 44.1KHz, 48KHz
Front Panel Features
LED Indicator Dual Color LED (Green for working, Red for Standby)
IR Sensor 38KHz
Rear Panel Connections
RCA Output 1 x AV Jack 3.5
USB 2.0 1 Port
HDMI HDMI1.4
Power Adaptor Socket 12V 1A
LAN Port 10M/100M Ethernet/RJ-45
Linux IPTV Set Top Box 1080P H.265 HEVC with 802.11n WiFi 1
