Linux HD Set Top Box with H.265 1080P IPTV Multicast
  • Linux HD Set Top Box with H.265 1080P IPTV Multicast
  • Linux HD Set Top Box with H.265 1080P IPTV Multicast
  • Linux HD Set Top Box with H.265 1080P IPTV Multicast
  • Linux HD Set Top Box with H.265 1080P IPTV Multicast
  • Linux HD Set Top Box with H.265 1080P IPTV Multicast
  • Linux HD Set Top Box with H.265 1080P IPTV Multicast

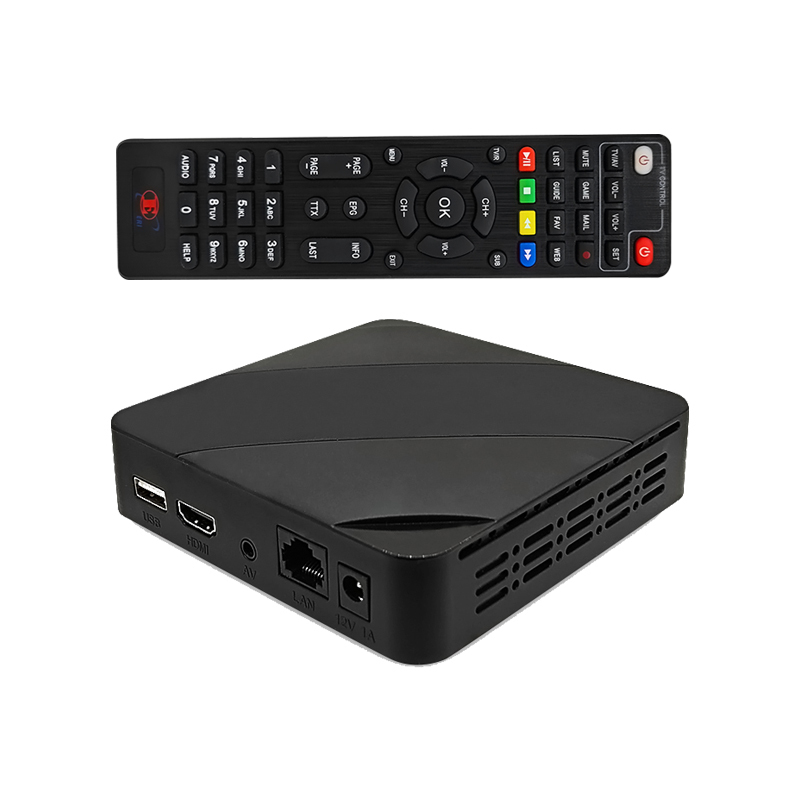

Linux HD Set Top Box with H.265 1080P IPTV Multicast

Linux HD Set Top Box with H.265 1080P IPTV Multicast

Place of Origin Guangdong, China
Model Number ERI-IPTV004
Product Details
Operating System:
Linux
Processor Core:
Quad Core
Processor:
GX6702H1
Supported Resolution:
1920 X 1080
Ethernet Speed:
10/100MBps
WiFi Standard:
802.11n 2.4GHz
USB Port:
1*USB 2.0
HD Codec:
H.265/HEVC
LAN Port:
RJ45 10M/100M
Video Decoder:
H.265 HEVC/H.264/H.263/MPEG-4/MPEG-2/AVS/AVS+/VC1
HDMI Version:
1.4
Power Supply:
12V 1A
CPU Frequency:
1500DMIPS 32bit
Flash Memory:
16MB
DDR3 Memory:
128MB
Highlight:

Linux HD set top box

,

H.265 1080P IPTV box

,

multicast TV set top box

Product Description
High Quality Customized Software Support H 265 Linux HD Set Top Box Internet Protocol TV Multicast
Product Overview
This high-performance Linux-based HD set-top box supports H.265/HEVC video decoding and IPTV multicast functionality, offering superior picture quality and streaming capabilities.
Linux HD Set Top Box with H.265 1080P IPTV Multicast 0
Key Specifications
Attribute Value
Brand ERI
Operating System Linux
Processor Core Quad Core
Processor GX6702H1
Supported Resolution 1920 x 1080
Ethernet 1 x 10/100MBps
WiFi 802.11n 2.4GHz
Warranty 1 YEAR
HD H.265/HEVC
Power Supply 12V 1A
Technical Details
CPU Specifications
Main Chip GX6702H1
O.S Linux
CPU Frequency 1500DMIPS 32bit
Flash 16MB
DDR3 128MB
System Features
IPTV protocol HLS(M3U8), UDP, RTP, RTSP, RTMP, HTTP
Content Protection HDCP, Macrovision 7.1, CGMS-A
DRM NSTV
Video Decoder
Video Decoder HEVC/H.265, H.264, MPEG-4, H.263 P3, AVS, AVS plus, MPEG-2, MPEG-1
Video Output CVBS*1, HDMI1.4
Video Format PAL/NTSC
Aspect Ratio 4:3/16:9
Resolution 1080p, 1080i, 720p, 576p, 480p, etc
Audio Decoder
Audio Decoder MPEG1 I/II, MP3, MPEG-4 AAC and AAC plus, DRA
Audio Mode Left/Right/Stereo
Sampling Frequency 32KHz, 44.1KHz, 48KHz
Physical Features
Front Panel
LED Indicator Dual Color LED (Green for working, Red for Standby)
IR Sensor 38KHz
Rear Panel
RCA Output 1*AV Jack 3.5
USB2.0 1
HDMI HDMI1.4
Power Adaptor Socket 12V 1A
LAN Port 10M/100M Ethernet/RJ-45
Linux HD Set Top Box with H.265 1080P IPTV Multicast 1
