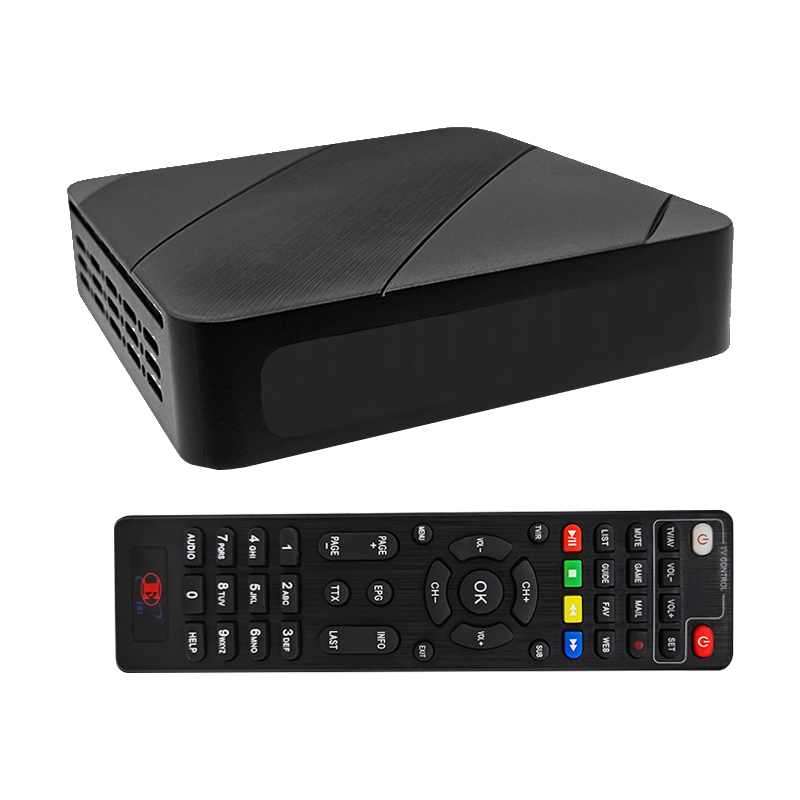

Linux IPTV Receiver 1080p H.265 HEVC with 10/100M Ethernet
  • Linux IPTV Receiver 1080p H.265 HEVC with 10/100M Ethernet
  • Linux IPTV Receiver 1080p H.265 HEVC with 10/100M Ethernet
  • Linux IPTV Receiver 1080p H.265 HEVC with 10/100M Ethernet
  • Linux IPTV Receiver 1080p H.265 HEVC with 10/100M Ethernet
  • Linux IPTV Receiver 1080p H.265 HEVC with 10/100M Ethernet
  • Linux IPTV Receiver 1080p H.265 HEVC with 10/100M Ethernet
Linux IPTV Receiver 1080p H.265 HEVC with 10/100M Ethernet

Linux IPTV Receiver 1080p H.265 HEVC with 10/100M Ethernet

Place of Origin Guangdong, China
Model Number ERI-IPTV004
Product Details
Operating System:
Linux
Processor Core:
Quad Core
Processor:
GX6702H1
Supported Resolution:
1920 X 1080
Ethernet:
10/100MBps
WiFi:
802.11n 2.4GHz
USB Host:
1*USB 2.0
Video Decoder:
H.265 HEVC/H.264/H.263/MPEG-4/MPEG-2/AVS/AVS+/VC1
HDMI Version:
1.4
Power Supply:
12V 1A
CPU Frequency:
1500DMIPS 32bit
Flash Memory:
16MB
DDR3 Memory:
128MB
Audio Decoder:
MPEG1 I/II, MP3, MPEG-4 AAC And AAC Plus, DRA
Sampling Frequency:
32KHz, 44.1KHz, 48KHz
Highlight:

Linux IPTV receiver with Ethernet

,

1080p H.265 HEVC set top box

,

IPTV box with 10/100M Ethernet

Product Description
HLS(M3U8) UDP RTP RTSP RTMP HTTP Linux Internet Protocol TV 1080p HD Digital Internet Receiver
Linux IPTV Receiver 1080p H.265 HEVC with 10/100M Ethernet 0
Product Specifications
Brand ERI
Operating System Linux
Processor Core Quad Core
Processor GX6702H1
Supported Resolution 1920 x 1080
Ethernet 1 x 10/100MBps
WiFi 802.11n 2.4GHz
Warranty 1 YEAR
USB Host 1 x USB 2.0
HD H.265/HEVC
HDMI 1.4
Power Supply 12V 1A
Language Support Multilateral Languages
Technical Details
CPU Specifications
Main Chip GX6702H1
Operating System Linux
CPU Frequency 1500DMIPS 32bit
Flash Memory 16MB
DDR3 Memory 128MB
System Features
IPTV Protocols HLS(M3U8), UDP, RTP, RTSP, RTMP, HTTP
Content Protection HDCP, Macrovision 7.1, CGMS-A
DRM NSTV
Video Decoder
Supported Formats HEVC/H.265, H.264, MPEG-4, H.263 P3, AVS, AVS plus, MPEG-2, MPEG-1
Video Output CVBS*1, HDMI1.4
Video Format PAL/NTSC
Aspect Ratio 4:3/16:9
Resolution Support 1080p, 1080i, 720p, 576p, 480p
Audio Decoder
Supported Formats MPEG1 I/II, MP3, MPEG-4 AAC and AAC plus, DRA
Audio Mode Left/Right/Stereo
Sampling Frequency 32KHz, 44.1KHz, 48KHz
Front Panel Features
LED Indicator Dual Color LED (Green for working, Red for Standby)
IR Sensor 38KHz
Rear Panel Connections
RCA Output 1 x AV Jack 3.5
USB 2.0 1 Port
HDMI HDMI1.4
Power Adaptor Socket 12V 1A
LAN Port 10M/100M Ethernet/RJ-45
Linux IPTV Receiver 1080p H.265 HEVC with 10/100M Ethernet 1
