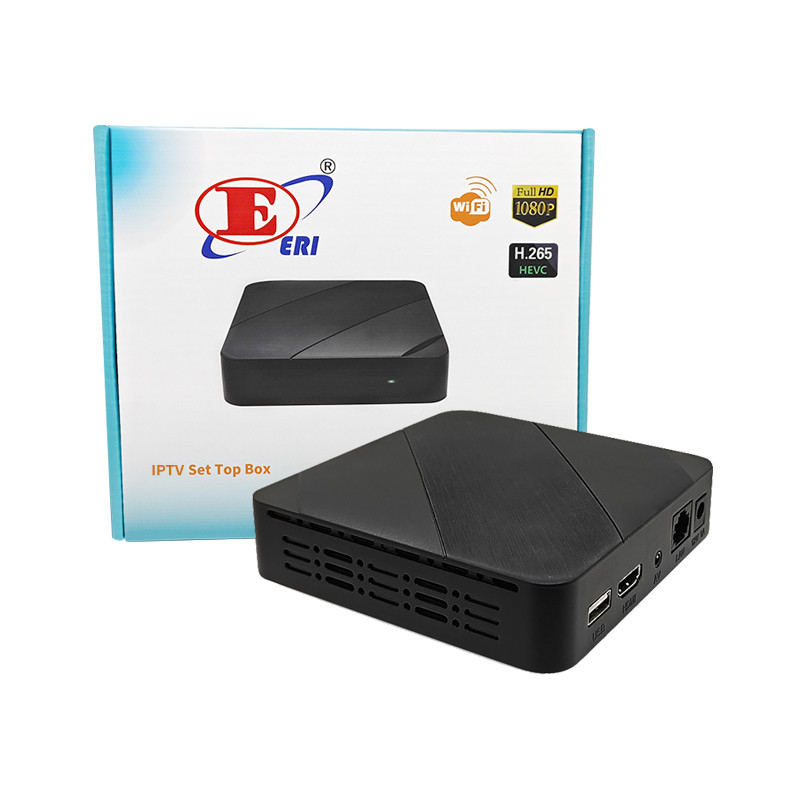

Interface Linux IPTV Set Top Box 1080 Xtream Smart Iptv Stb
  • Interface Linux IPTV Set Top Box 1080 Xtream Smart Iptv Stb
  • Interface Linux IPTV Set Top Box 1080 Xtream Smart Iptv Stb
  • Interface Linux IPTV Set Top Box 1080 Xtream Smart Iptv Stb

Interface Linux IPTV Set Top Box 1080 Xtream Smart Iptv Stb

Place of Origin Shenzhen China
Brand Name ERI
Model Number ERI-IPTV004
Product Details
Color:
Black
Main Chip:
GX6702H1
O.s:
Linux
Product:
Stb Linux Iptv
Video Decoder:
HEVC/H.265,H.264,MPEG-4,H.263 P3,AVS,AVSplus,MPEG-2,MPEG-1
Video Output:
CVBS*1,HDMI1.4
DDR3:
128MB
IPTV Protocol:
HLS(M3U8),UDP,RTP,RTSP,RTMP,HTTP
Content Protection:
HDCP, Macrovision 7.1,CGMS-A
High Light:

Interface Linux IPTV Set Top Box

,

Xtream Linux IPTV Set Top Box

,

1080 Smart Iptv Stb

Product Description

User Friendly Interface Resolution 1080 Xtream Code Stb Linux Iptv

Interface Linux IPTV Set Top Box 1080 Xtream Smart Iptv Stb 0
Stb Linux Iptv Description:



Internet Protocol Television or IPTV is a video broadcast technology that delivers video content



over computer networks. Instead of using mediums like cable or satellite radio to deliver content,



IPTV uses converged IP networks, allowing other services like VoIP, computer data exchange,



or Internet access to be still available from the same network. IPTV fits perfectly with the concept



of Internet-of-Things and other ITC trends.




Interface Linux IPTV Set Top Box 1080 Xtream Smart Iptv Stb 1

Stb Linux Iptv Specification:



- O.S:Linux 4.9

- CPU Frequency:1500DMIPS 32bit

- Flash:16MB

- DDR3:1Gb=1024Mb=128MB

- IPTV protocol:HLS(M3U8),UDP,RTP,RTSP,RTMP,HTTP

- Video Output:CVBS*1, HDMI1.4

- Sampling Frequency:32KHz, 44.1KHz, 48KHz




Application With Stb Linux Iptv:

- Cable TV Operator
- Pay TV Operator
- Internet Service Provider
- Content Provider
- Personal Usage
- HD set-top box


Features of Stb Linux Iptv :



- High performance 32-bit CK610M CPU integrates 16Kbytes instruction cache and

16Kbytes data cache. Provides up to 1500 DMIPS. JTAG debug supported

- Built-in 128MB DDR3 SDRAM

- The multi-standard video decoder supports JPEG/MJPEG, MPEG2, AVS, AVS plus,

MPEG4, H.264, H.265 10bit/60fps HD or SD advanced video decoding. Error

protection and concealment supported

- HDR video decoding and display Supported

- All of the PAL and NTSC analog TV standards supported




Advantages for Stb Linux Iptv:



1. Small quantity can accept(no matter how much quantity do you need,we can support as starting).

2. High Product Reliability

3. Affordable Pricing

4. Wide Range of Product Offerings

5. Comprehensive Product Warranty





Interface Linux IPTV Set Top Box 1080 Xtream Smart Iptv Stb 2

FAQ:



1. What are the parental control options on a set-top box?



Content Ratings Many set-top boxes allow you to block content based on its rating.



For example, you can block programming that is rated TV-MA (Mature Audiences Only) or R (Restricted).



Channel Blocking You can block specific channels that you do not want your children to access.



Time Limits: Some set-top boxes allow you to set time limits for how long your children can watch TV



each day or during certain times of the day.



Purchase Restrictions: You can restrict the ability to purchase or rent content, such as movies or TV shows,



without a PIN or password.



Program Blocking: You can block specific programs or shows that you do not want your children to watch.



Viewing History Some set-top boxes allow you to see what programs your child has watched.





2. Can I use a voice assistant with a set-top box?



Yes, some set-top boxes are compatible with voice assistants, such as Amazon Alexa or Google Assistant.



This allows you to control your set-top box using voice commands, such as changing the channel or searching



for a specific program. However, not all set-top boxes support voice assistants, so it's important to check



the specifications of the set-top box before purchasing. Additionally, you may need to set up the voice



assistant separately and link it to your set-top box. Consult the user manual or settings menu of your set-top box



and voice assistant for more information on how to set up and use voice commands with your set-top box.





3. Can I use a set-top box with satellite TV?



Most satellite receivers are totally dedicated to watching TV, very few are also multifunctional devices also



capable of playing media from a network but there are a few. The CPU in many satellite receivers is not very



powerful and they have very little memory, instead they have specific cores for decoding audio and video.



So they pretty mucg suck for doing much else.



Also the software for each receiver is quite custom, so running other applications is hard and operators



don't like people playing with them.





4. How do I add new channels to my set-top box?



Scan for channels: Most set-top boxes have a channel scan feature that allows you to search for new channels.



This feature can usually be found in the settings or menu of the set-top box. The scan may take a few



minutes to complete.



Manually add channels: If the channel scan doesn't find the channels you want to add, you may be able



to manually add them. This usually involves entering the channel frequency or signal information into the set-top box.





5. Can I use a set-top box to play video games?



You can experience these high-quality video games on your big screen without the need for any heavy gaming



hardware. Use the remote that comes bundled with the set-top-box or any Bluetooth-enabled game



controller or even your own smartphone to enjoy an effortless gaming experience on your TV.
