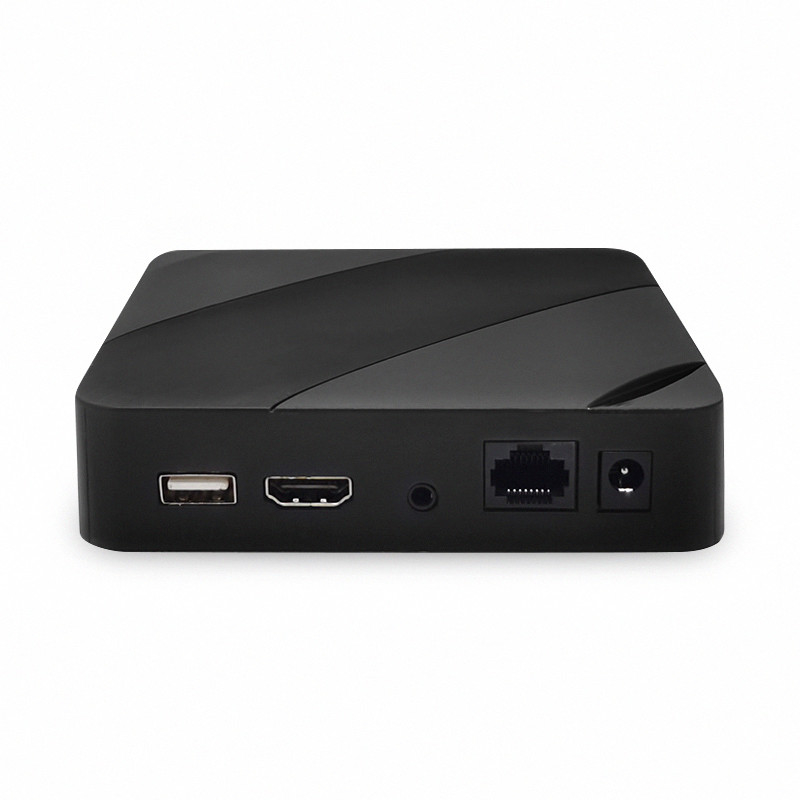

Hd Linux IPTV Box Mutil Protocol Support H265 RTMP Decoder
  • Hd Linux IPTV Box Mutil Protocol Support H265 RTMP Decoder
  • Hd Linux IPTV Box Mutil Protocol Support H265 RTMP Decoder
  • Hd Linux IPTV Box Mutil Protocol Support H265 RTMP Decoder

Hd Linux IPTV Box Mutil Protocol Support H265 RTMP Decoder

Place of Origin Shenzhen China
Brand Name ERI
Model Number ERI-IPTV004
Product Details
LAN Port:
10M/100M Ethernet/RJ-45
USB:
For Media/For Software Update
Aspect Ratio:
4:3/16:9
Product:
Iptv Box M3u
Flash:
16MB
Wifi Module(optional):
802.11 For 2.4GHZ Band
Warranty:
13months
Resolution:
HD 1080P/1080I
Color:
Black
High Light:

Hd Linux IPTV Box

,

H265 Linux IPTV Box

,

RTMP Decoder

Product Description

Mutil Protocol Support RTMP H265 Decoder Software Upgrade Hd Iptv





Hd Linux IPTV Box Mutil Protocol Support H265 RTMP Decoder 0

Hd Iptv Description:



IP Datacast (IPDC) is an IP-based service used to deliver video, audio, graphics and data via virtually any broadband delivery system. The data is encapsulated in an IP (Internet Protocol) packet data stream. If the data is TV content it is also called IPTV.

Internet Protocol Television or IPTV is a video broadcast technology that delivers video content over computer networks. Instead of using mediums like cable or satellite radio to deliver content, IPTV uses converged IP networks, allowing other services like VoIP, computer data exchange, or Internet access to be still available from the same network. IPTV fits perfectly with the concept of Internet-of-Things and other ITC trends.

Hd Linux IPTV Box Mutil Protocol Support H265 RTMP Decoder 1

Hd Iptv Specification:



  1. O.S:Linux 4.9
  2. CPU Frequency:1500DMIPS 32bit
  3. Flash:16MB
  4. DDR3:1Gb=1024Mb=128MB
  5. IPTV protocol:HLS(M3U8),UDP,RTP,RTSP,RTMP,HTTP
  6. Resolution:1080p, 1080i, 720p, 576p, 480p, etc
  7. Sampling Frequency:32KHz, 44.1KHz, 48KHz





Application With Hd Iptv:



  1. Cable TV Operator
  2. Pay TV Operator
  3. Internet Service Provider



Features of Hd Iptv :



1.High performance 32-bit CK610M CPU integrates 16Kbytes instruction cache and

16Kbytes data cache. Provides up to 1500 DMIPS. JTAG debug supported

2.Built-in 128MB DDR3 SDRAM

3.The multi-standard video decoder supports JPEG/MJPEG, MPEG2, AVS, AVS plus,

MPEG4, H.264, H.265 10bit/60fps HD or SD advanced video decoding. Error

protection and concealment supported





Advantages for Hd Iptv:



1. Flexible Manufacturing Capabilities

2. Customizable Product Options

3. State-of-the-Art Technology

4. Continuous Product Innovation

5. Efficient Supply Chain Management





Hd Linux IPTV Box Mutil Protocol Support H265 RTMP Decoder 2



FAQ:



1. What is a set-top box?



A set top box is a device that connects a TV set to an external signal source. It converts the source

signal to TV content and displays it on the TV set. The signal can come from cable cables, satellite

dishes, broadband networks, and terrestrial broadcasts. The content received by the set top box is

not only the image and sound that analog TV can provide, but also the ability to receive data content,

including electronic program guides, Internet pages, subtitles, etc.



2.What are the features of a set-top box?



There are electronic program guide,favorites,timer,controls on the box,remote controls that work with

other TVs,parental locks etc.



3.Can I use a set-top box with a non-smart TV?



Just like one uses a DTH set-top box to watch regular network channels on their TV, an Android set-top box assists in streaming OTT platforms on your normal TV. A regular TV doesn't have OTT apps inbuilt into its system. The Android box when connected to your normal TV makes it compatible to support for these OTT apps.



4.How do I choose the right set-top box for my needs?



Four Things to Consider When Choosing the Best Set-top Box

High Definition (HD) or Standard Definition (SD),Hard Drive,Television Streaming Services,Internet Connection.



5.Can I record programs with a set-top box?



You can record shows on your set-top box by either selecting guide on your digital TV remote or pressing the smart TV button on your remote control. After that, click on OK. You can decide how you want to record by timing or show titles.
