Protocol Setup Box Iptv HLS M3U8 Ethernet Lan Port Audio Setting

IPTV Protocol Support HLS M3U8 Ethernet Lan Port Audio Setting Setup Box Iptv

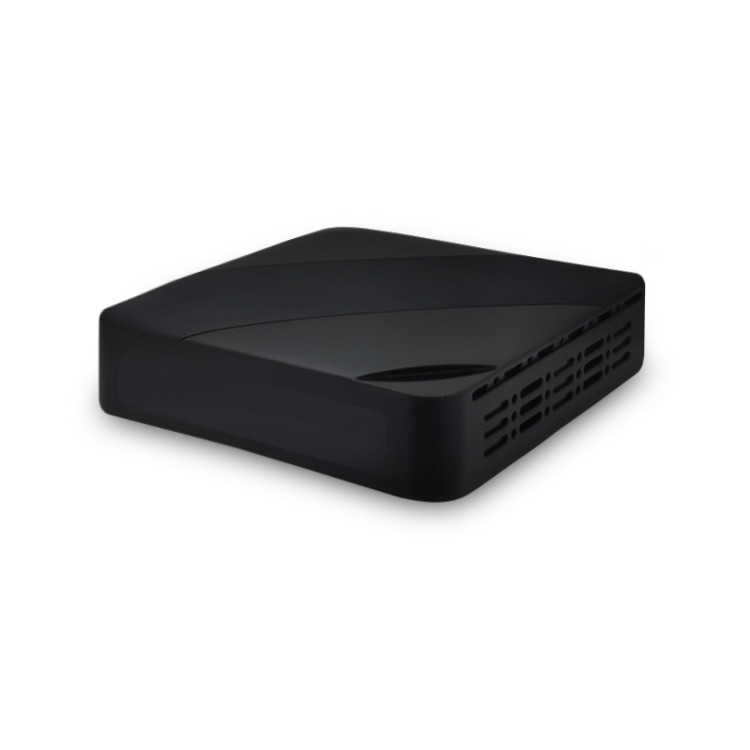

Setup Box IPTV Description:

IPTV is the delivery of television and other video and audio services over a broadband data network using IP,

e.g. the internet access network. Customers can use a set-top-box (STB) to watch the television programs

on their TV.

Setup Box IPTV Specification:

-O.S:Linux 4.9

-CPU Frequency:1500DMIPS 32bit

-Flash:16MB

-DDR3:1Gb=1024Mb=128MB

-IPTV protocol:HLS(M3U8),UDP,RTP,RTSP,RTMP,HTTP

-Video Decoder:HEVC/H.265,H.264,MPEG-4,H.263 P3,AVS,AVS plus,MPEG-2,MPEG-1

-Video Output:CVBS*1, HDMI1.4

Application With Setup Box IPTV:

- Cable TV Operator

- Pay TV Operator

- Internet Service Provider

Features:

- High performance 32-bit CK610M CPU integrates 16Kbytes instruction cache and

16Kbytes data cache. Provides up to 1500 DMIPS. JTAG debug supported

- Built-in 128MB DDR3 SDRAM

- The multi-standard video decoder supports JPEG/MJPEG, MPEG2, AVS, AVS plus,

MPEG4, H.264, H.265 10bit/60fps HD or SD advanced video decoding. Error

protection and concealment supported

Advantages:

1. We have our own professional R&D team,so that can provide customers prompt and professional support.

2. Small quantity can accept(no matter how much quantity do you need,we can support as starting).

3. Customization service for hardware/software/package etc.

4. Flexible business way(CKD/SKD/CBU etc.)

5. Keep regular stock for every our model,for small quantity can ship in time.

FAQ:

1. What is a set-top box?

A set top box is a device that connects a TV set to an external signal source. It converts the source

signal to TV content and displays it on the TV set. The signal can come from cable cables, satellite

dishes, broadband networks, and terrestrial broadcasts. The content received by the set top box is

not only the image and sound that analog TV can provide, but also the ability to receive data content,

including electronic program guides, Internet pages, subtitles, etc.

2.What are the features of a set-top box?

There are electronic program guide,favorites,timer,controls on the box,remote controls that work with

other TVs,parental locks etc.

3.How does a set-top box work?

Set top boxes allow a user to choose from specific providers, and then filter down to the video content

they wish to consume. In other words, the box would transmit numerous channels to an auxiliary channel

on the television. Many early Set Top Boxes also included a decoder for pay per view and premium channels.

4.What are the different types of set top boxes?

A set top box (STB), also colloquially known as a cable box or receiver and historically television decoder,

is an information appliance device that generally contains a TV tuner input and displays output to a television

set and an external source of signal, turning the source signal into content in a form that can then be displayed

on the television screen or other display device. They are used in cable television, satellite television, and

over-the-air television systems as well as other uses.

5.What are the benefits of a set-top box?

A set top box allows you to: View all channels and packages. With an HD set-top box, you can receive all

HD channels included in your cable TV package. Add Basic Plus or HD Essentials, sports packages and

premium channels.
