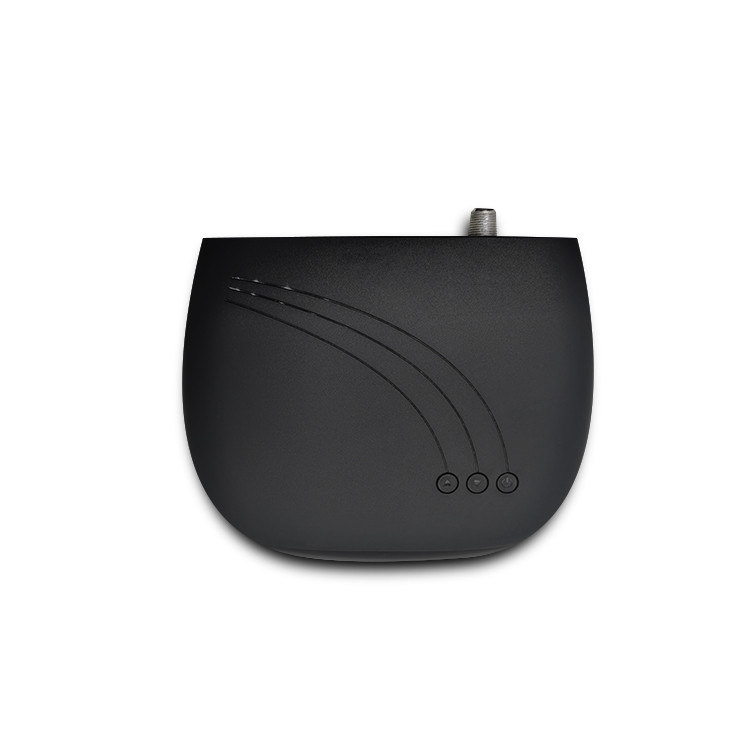

Time Shift Mpeg 4 Setup Box PVR Tv Digital Set Top Box
  • Time Shift Mpeg 4 Setup Box PVR Tv Digital Set Top Box
  • Time Shift Mpeg 4 Setup Box PVR Tv Digital Set Top Box
  • Time Shift Mpeg 4 Setup Box PVR Tv Digital Set Top Box

Time Shift Mpeg 4 Setup Box PVR Tv Digital Set Top Box

Place of Origin Shenzhen China
Brand Name ERI
Model Number ERI-DVBCHD008
Product Details
Color:
Black
USB:
1 For PVR,1 For Wifi Dongle
Aspect Ratio:
4:3/16:9
Product:
Mpeg 4 Setup Box
Demodulation:
16,32,64,128,256QAM
Warranty:
13 Months
Input Impedance:
75Ω
Standard:
DVB-C (ITU-T J.83A/C)
Language:
Multi-language
High Light:

Time Shift Mpeg 4 Setup Box

,

Tv Mpeg 4 Setup Box

,

PVR Tv Digital Set Top Box

Product Description

Dedicated Customer Support Parental Lock Time Shift Mpeg 4 Setup Box Tv Digital Set Top Box





Description Of Mpeg 4 Setup Box:





Digital Video Broadcasting Cable (DVB-C) is known as the digital multi-program television distribution system by cable.



The DVB-C transmission standard is based on the MPEG-2 system layer, with the addition of appropriate forward error



correction (FEC) technique. The system FEC is designed to improve bit error ratio (BER) from 10-4 to a range,



10-10 to 10-11, ensuring quasi error free (QEF) operation with approximately one uncorrected error event



per transmission hour. DVB-C is based on quadrature amplitude modulation (QAM) and it allows for 16, 32, 64,



128 or 256-QAM constellations.





Mpeg 4 Setup Box Specification:



- NTSC: 480i/480p/720p/1080i/1080P

- STB Upgrade via USB, OTA or Serial Port

- Boot-up Logo, Radio Image and Watermark

- 7-day EPG with Synopsis and Rolling Event

- CAS Supported

- Auto, Manual or Full Channel Search





Application With Mpeg 4 Setup Box:



- Cable TV Operator

- Pay TV Operator





Mpeg 4 Setup Box Features:



 CPU Frequency  1500DMIPS@660MHz, 32bit
 Flash  8MB
 DDR3  128MB
 Input Signal Range  38-100dBuV
 Input Impedance  75Ω



Mpeg 4 Setup Box Advantages:



1. State-of-the-Art Technology

2. Flexible business way(CKD/SKD/CBU etc.)

3. Large Production Capacity

4. Comprehensive Marketing Strategies

5. Experienced Research and Development Team





Time Shift Mpeg 4 Setup Box PVR Tv Digital Set Top Box 0





FAQ:





1. What is the range of the remote control for a set-top box?



As long as you're within range of your cable box, your remote should work fine.



Most Bluetooth devices will work up to 30 feet away and RF can go a bit farther.



For example, the Siri Remote for the Apple TV uses Bluetooth while various universal remote controls use RF.





2. How do I set up my set-top box for surround sound?



Connect the HDMI cable to the HDMI OUT of the source device.



Connect the other end of the HDMI cable to the HDMI IN on the A/V receiver or Home Theatre system.



Using a second HDMI cable to the HDMI OUT of the A/V receiver or Home Theatre system.



Connect the other end of the HDMI cable to an HDMI IN on the TV.
