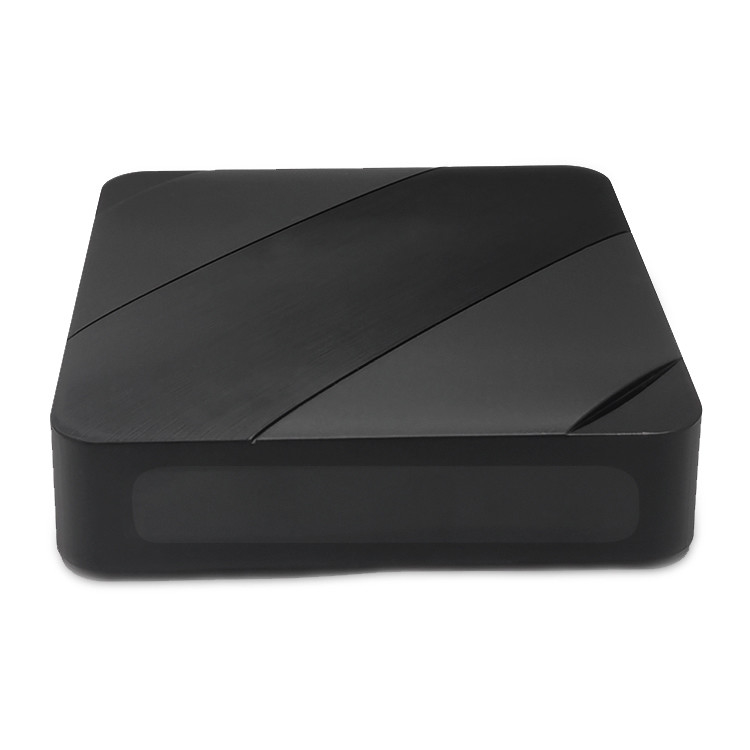

Customized DVBC Set Top Box

Place of Origin	Shenzhen China
Brand Name	ERI
Model Number	ERI-DVBCHD004

Product Details

Color:

Black

USB:

1 For PVR,1 For Wifi Dongle

Memory:

1GB DDR3 8GB Nand Flash

Product:

Vietnam Set Top Box Shenzhen

OEM/ODM:

Yes

Function:

Home Security,OSD,protection Etc.

Support:

H.264 Decoder/H.265 Decoder

Power Supply:

12V 1A

Language:

Multi-language

Highlight:

Customized DVBC Set Top Box

NTSC DVBC Set Top Box

HD DVBC Set Top Box

Product Description

Compliant with DVB-C Standard Fully

MPEG-4/H.264 Decoded

PAL: 576i/576p/720p/1080i/1080P

NTSC: 480i/480p/720p/1080i/1080P

CAS Supported

USB WIFI Dongle both Internet and Interactive Function

Auto Network Lock as per Different Network Name/ID and Home TS

USB PVR and Time-shift

NIT Auto Detect as per Service ID

STB Guide/Genre as per BAT Table (Bouquet)

Boot-up Logo, Radio Image and Watermark

7-day EPG with Synopsis and Rolling Event

Channel Booking and Editing

Email, Parental Lock and Timer

Audio, Video and Picture Setting

STB Upgrade via USB, OTA or Serial Port

Auto, Manual or Full Channel Search

Last Channel Memory and Multi-language

32 Around Favorite Group

Customized DVBC Set Top Box 2

CPU
Main Chip	GX3113U1/GX3113E1
CPU Frequency	1500DMIPS 660MHz, 32bit
Flash	8MB
DDR3	128MB

Tuner
Brand	MXL608
Input Signal Range	38-100dBuV
Input Impedance	75Ω

Channel Decoding
Standard	DVB-C (ITU-T J.83A/C,Annex B)
Demodulation	16,32,64,128,256QAM
Bandwidth	8M

Video Decoder
Video Decoder	H.264, MPEG-4, MPEG-2, MPEG-1, SP/MP/AP
Video Output	CVBS*1, HDMI1.4
Video Format	PAL/NTSC
Aspect Ratio	4:3/16:9
Resolution	HD&SD to 576P,720P,1080i decode&1080P Display

Audio Decoder
Audio Decoder	MPEG1, MP3, MPEG-4 AAC&AAC+, DRA, AC-3& DD+
Audio Output	HDMI1.4, A-L, A-R
Audio Mode	Left/Right/Stereo
Sampling Frequency	32KHz, 44.1KHz, 48KHz

Front Panel Sample
LED Indicator	Green for Signal, Red for Standby
IR Sensor	38KHz

Rear Panel Sample
Cable In	F-Type
RCA Output	1*AV Jack 3.5
USB2.0	2
HDMI	HDMI1.4
IR Extension	1PCS
Power Adaptor Socket	12V=1A

Conditional Access
COB	NSTV/ABV/EnsuritySumavision
Soft CAS	NSTV/ABV/Sumavision
Smart Card	NSTV/ABV/Ensurity/

Environment
Operation Temperature	0℃~75℃
Storage Temperature	-15℃~70℃
Working Power Consumption	7W
Standby Power Consumption	<1W

PRODUCT PACKAGE

Customized DVBC Set Top Box 4

OUR ADVANTAGES

COMPANY PROFILE
